Arista Switch Syslog Configuration On-premises

This article covers prerequisites required to configure Arista Switch Syslog and steps to configure this Arista switch in detail.

Arista's devices are multilayer switches, which support a range of layer 3 protocols,[59] including IGMP, Virtual Router Redundancy Protocol (VRRP), Routing Information Protocol (RIP), Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), IS-IS, and OpenFlow. The switches are also capable of layer 3 or layer 4 equal-cost multi-path routing (ECMP) and applying per-port L3/L4 access-control lists (ACLs) entirely in hardware.

Prerequisites

• Arista EOS 4.23.x and above should be installed.
• Administrative access on Arista EOS Switch.
• Allow 11728 port number if any firewall exists between the Forwarder and Arista switch.

Configuring syslog in Arista switch

1. Log into the Arista switch.
2. Go to configuration mode.
3. Configure the switch as below to send logs to the Forwarder Server.
   • • • Arista# config terminal
       • Arista(config)# logging host < Eventlog_Server_Ip > < port_number > protocol [tcp/udp] where <Eventlog_Server_Ip> is Forwarder_IP  < port_number> is 11728
       • Arista(config)# logging trap information
       • Arista(config)# copy running-config startup-config

To configure command execution logging:

• • • Arista (config)# aaa accounting commands all console start-stop logging
    • Arista (config)# aaa accounting commands all default start-stop logging
    • Arista (config)# aaa accounting exec console start-stop logging
    • Arista (config)# aaa accounting exec default start-stop logging
    • Arista (config)# copy running-config startup-config

To Configure logon logging:

• • • Arista (config)# aaa authentication policy on-success log
    • Arista (config)# aaa authentication policy on-failure log
    • Arista (config)# copy running-config startup-config

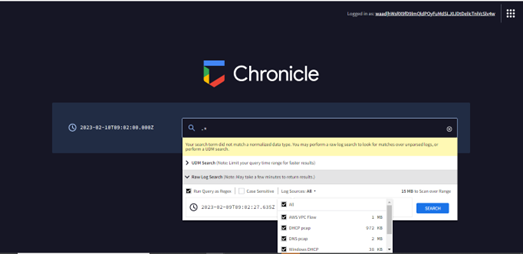

4. Once the configuration is completed, need to validate the logs in chronicle using a regular expression as (".*") this expression or with specific hostname, will provide the log source types which are ingesting to chronicle, below is the screen shot for reference.
