ZScaler Firewall and DNS

This article covers how to configure Syslog on Zscaler firewall.

Configuring Syslog on Zscaler Firewall

For ZSCALER_FIREWALL:

To configure a feed for the Firewall Logs, enter the following details while you feed,

• Feed Name: Enter the name as Firewall logs.
• NSS Type: Select NSS for Firewall.
• NSS Server: Choose the NSS from the list.
• Status: It is Enabled by default.
• SIEM Destination Type: Enter the Chronicle Forwarder IP Address.
• SIEM TCP Port: Enter port number 11667
• Log Type: Choose Firewall Logs.
• SIEM Rate Limit (Events per Second): Leave as unrestricted or unlimited.
• Feed Output Type: Select Custom.
• Feed Output Format: For the NSS Feeds for Firewall logs, copy and paste the following code:

%s{mon} %02d{dd} %02d{hh}:%02d{mm}:%02d{ss} zscaler-nss-fw CEF:0|Zscaler|NSSFWlog|5.7|%s{action}|%s{rulelabel}|3| act=%s{action} suser=%s{login} src=%s{csip} spt=%d{csport} dst=%s{cdip}dpt=%d{cdport} deviceTranslatedAddress=%s{ssip} deviceTranslatedPort=%d{ssport} destinationTranslatedAddress=%s{sdip} destinationTranslatedPort=%d{sdport} sourceTranslatedAddress=%s{tsip} sourceTranslatedPort=%d{tsport} proto=%s{ipproto} tunnelType=%s{ttype} dnat=%s{dnat} spriv=%s{location} reason=%s{rulelabel} in=%ld{inbytes} out=%ld{outbytes} deviceDirection=1 cs1=%s{dept} cs1Label=dept cs2=%s{nwsvc} cs2Label=nwService cs3=%s{nwapp} cs3Label=nwApp cs4=%s{aggregate} cs4Label=aggregated cs5=%s{threatcat} cs5Label=threatcat cs6=%s{threatname} cs6label=threatname cn1=%d{durationms}cn1Label=durationms cn2=%d{numsessions} cn2Label=numsessions cs5Label=ipCat cs5=%s{ipcat} destCountry=%s{destcountry} avgduration=%d{avgduration}\n

• User Obfuscation: Choose Disable to display the usernames.
• Timezone: By default, this is set to the organization's time zone.
• Duplicate Logs: Enter the number of 60 (minutes).
• Click Save and Activate the change.

Configuring Syslog on Zscaler on DNS

For ZSCALER_DNS:

To configure a feed for the DNS Logs, please enter the following details while you feed,

• Feed Name: Enter the name as DNS logs.
• NSS Type: Select NSS for DNS.
• NSS Server: Choose the NSS from the list.
• Status: It is Enabled by default.
• SIEM Destination Type: Enter the Chronicle Forwarder IP Address.
• SIEM TCP Port: Enter port number 11666
• Log Type: Choose DNS Logs.
• SIEM Rate Limit (Events per Second): Leave as unrestricted or unlimited.
• Feed Output Type: Select Custom.
• Feed Output Format: For the NSS Feeds for Firewall logs, copy and paste the following code:

%s{mon} %02d{dd} %02d{hh}:%02d{mm}:%02d{ss} zscaler-nss-fw-dns CEF:0|Zscaler|NSSFWlog|5.7|%s{action}|%s{rulelabel}|3| act=%s{ action} suser=%s{login} cip=%s{cip} cpt=%d{cport} spriv=%s{loc ation} reason=%s{rulelabel} in=%ld{inbytes} out=%ld{outbytes} deviceDirection=1 durationms=%d{durationms} ruleresponse=%s{re srulelabel} responseaction=%s{resaction} suser=%s{login} serve ripaddress=%s{sip} serverport=%d{sport} externalId=%d{recordid } FQDN=%s{req} Domaincategory=%s{domcat} requesttype=%s{reqtyp e} encoded=%s{eedone} datacentername=%s{datacenter} detecenter city=%s{datacentercity} datacentercountry=%s{datacentercountry }\n

• User Obfuscation: Choose Disable to display the usernames.
• Timezone: By default, this is set to the organization's time zone.
• Duplicate Logs: Enter the number of 60 (minutes).
• Click Save and Activate the change.

Verifying logs on Chronicle

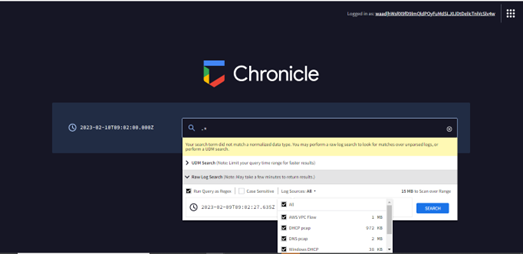

Once the configuration is completed, need to validate the logs in chronicle using a regular expression as (".*") this expression or with specific hostname, will provide the log source types which are ingesting to chronicle, below is the screen shot for reference.
