Syslogs in Cisco ISE

This article describes the steps to configure syslog on the Cisco ISE.

Prerequistes

• Administrator login credentials.

Configuring Syslogs

1. Login to your Cisco ISE Administration Interface.

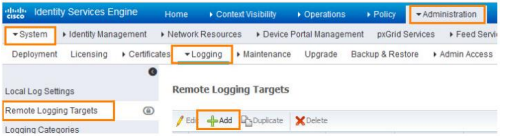

2. Navigate to Administration > System > Logging > Remote Logging Targets.

3. Click Add.

4. Configure the below fields.

• Name: Unique Name
• IP Address: Forwarder IP Address
• Port: 11557
• Target Type: TCP or UDP
• Status: Enabled
• Maximum Length: Choose Length

5. Click Save.

6. Additional Configuration of Logging Categories.

   - Navigate to Administration > System > Logging > Logging Categories.

7. You will be presented with a list of available logging categories.

    - Select a logging category and click Edit.

8. For Log Severity, select a severity for the logging category.

9. In the Target field, add your remote logging target unique name (as created in step 4).

10. Click Save. (repeat the 7^th step for all categories if required.)
