ManageEngine AD AuditPlus logs

This topic describes the steps to configure syslog on the MangeEngine ADAudit Plus.

Prerequisites

• Administrator login credentials.

Configuring ManageEngine AD logs

1. Login to your ManageEngine ADAudit Plus Administration Interface.

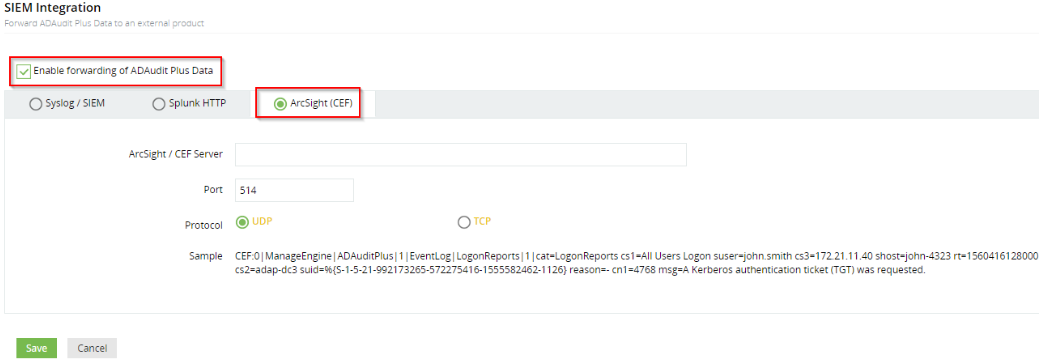

2. Navigate to Admin > Configuration > SIEM Integration
3. Check the box next to Enable to forward the ADAudit Plus logs.

4. Select the ArcSight format and configure the following fields:

• IP Address: Forwarder IP Address
• Port: 11603
• Target Type: TCP or UDP

ArcSight CEF Key Mappings

CEF Key	ADAuditPlus Column
cat	ADAuditPlus Category
cn1	Event Number
cn2	Record Number
cn3	Unique ID
cs1	ADAuditPlus Report Profile Name
cs4	ADAuditPlus Alert Profile Name
cs3	Event Source
cs5	Severity
rt	Event Time
type	Event Type
reason	Event Remarks
outcome	Event Outcome
msg	ADAuditPlus Message String
fileName	File Name
fileLocation	File Location
suser	User Name / Caller User Name
suid	User SID / Caller User Name
sntdom	Domain Name / Caller Domain Name
shost	User Machine / Caller Machine Name
cs2	User Machine IP Address
duser	Target User Name

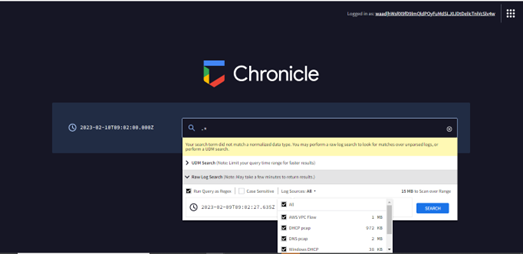

Once the configuration is completed, you need to validate the logs in the chronicle using a regular expression such as (".*") . This expression, or a specific hostname, will provide the log source types that are being ingested to chronicle. Below is a screen shot for reference.
