KnowBe4 PhishER syslogs

This topic describes the steps to configure syslog on the KnowBe4 PhishER.

Prerequisites

• Administrator login credentials.

Configuring Knowbe4 Phisher syslogs

1. Login to your KnowBe4 PhishER Platform.

2. Navigate to Settings > Syslog.

3. Click the New Syslog button in the top-right corner of the page.

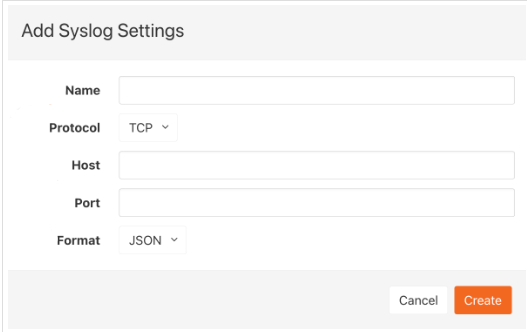

4. In the Add Syslog Settings pop-up window that opens, configure your Syslog server settings.

5. Configure the below fields.

• Name: Unique Name
• Protocol: TCP or UDP
• Host: Forwarder IP Address
• Port: 21667
• Format: Select the appropriate standard JSON or CEF or LEEF

6. Click Create.

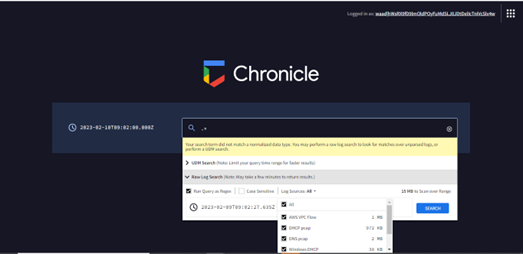

Once the configuration is completed, we need to validate the logs in chronicle using a regular expression such as (".*") This expression, or a specific hostname, will provide the log source types that are being ingested into the chronicle. Below is a screen shot for reference.
