Proofpoint Threat Response Syslogs

This topic describes the steps to configure Syslog for the Proofpoint Threat Response.

Prerequisites

• Administrator login credentials.

Configuring Syslog on Proofpoint Threat Response

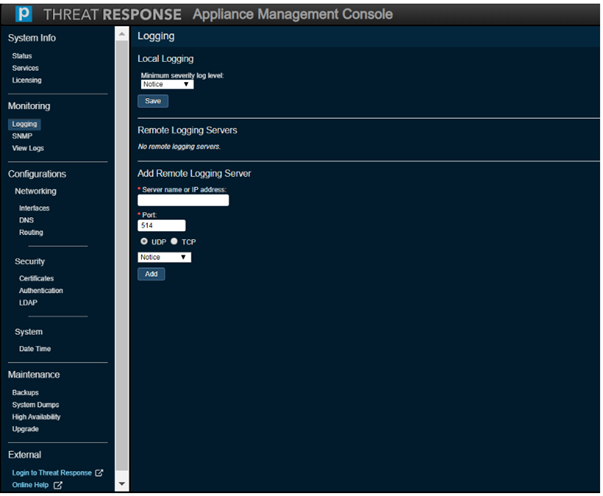

1. Sign in to the Threat Response Appliance Management Console using https://trap-server-name.yourdomain:8080

2. Navigate to the Monitoring tab > select Logging.

3. Configure the following fields:

• Minimum Severity log level: Choose the appropriate severity level from the drop-down menu.
• Server name or IP address: Forwarder IP Address
• Port: 21669
• Protocol: TCP or UDP

Add the below collector in the configuration file of a forwarder to get logs from Proofpoint Threat Response.

--------------------
- syslog:
    common:
      enabled: true
      data_type: PROOFPOINT_TRAP
      data_hint:
      batch_n_seconds: 10
      batch_n_bytes: 1048576
      tcp_address: 0.0.0.0:21669
      udp_address: 0.0.0.0:21669
