Darktrace (DARKTRACE)

Overview

This topic describes the steps to configure syslog on Darktrace.

Prerequisites

Need to have Administrator login credentials.

Configuration Syslog on Darktrace:

1. Sign into the Darktrace Interface.

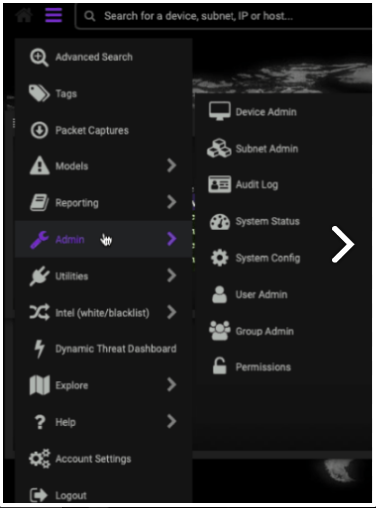

2. Expand the top left menu and select Admin. A second menu appears.

3. Click on the System Config option

4. In Alerting section, click on Verify Alert Settings

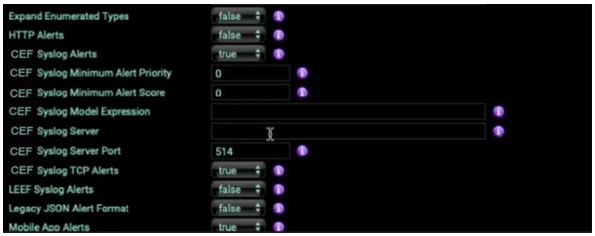

5. Set the following parameters,

- CEF Syslog Alerts: True

- CEF Syslog Server: Forwarder IP Address

- CEF Syslog Server Port: 11571

- CEF Syslog TCP Alert: True

Please add the below collector in the Config file in the forwarder to get logs from Darktrace.

--------------------
- syslog:

        common:

          enabled: true

          data_type: DARKTRACE

          data_hint:

          batch_n_seconds: 10

          batch_n_bytes: 1048576

        tcp_address: 0.0.0.0:11571

        udp_address: 0.0.0.0:11571
