Overview
This topic describes the steps to configure syslog on the HP ILO.
Prerequisites
Need to have Administrator login credentials.
Configuration syslog in HP ILO
Configuring syslog message forwarding

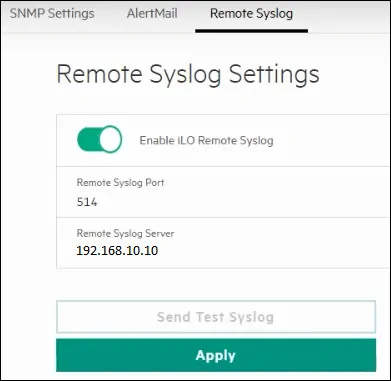

1. Click Management in the navigation tree, and then click the Remote Syslog tab.
2. Set the Enable iLO Remote Syslog option.
Enter the following information:
Remote Syslog Port: 11680
Remote Syslog Server: <Forwarder IP Address>
3. Click on the Apply button to finish your configuration.
Please add the below Syslog Collector in Config File,
- syslog:
common:
enabled: true
data_type: HPE_ILO
data_hint:
batch_n_seconds: 10
batch_n_bytes: 1048576
tcp_address: 0.0.0.0:11680
udp_address: 0.0.0.0:11680

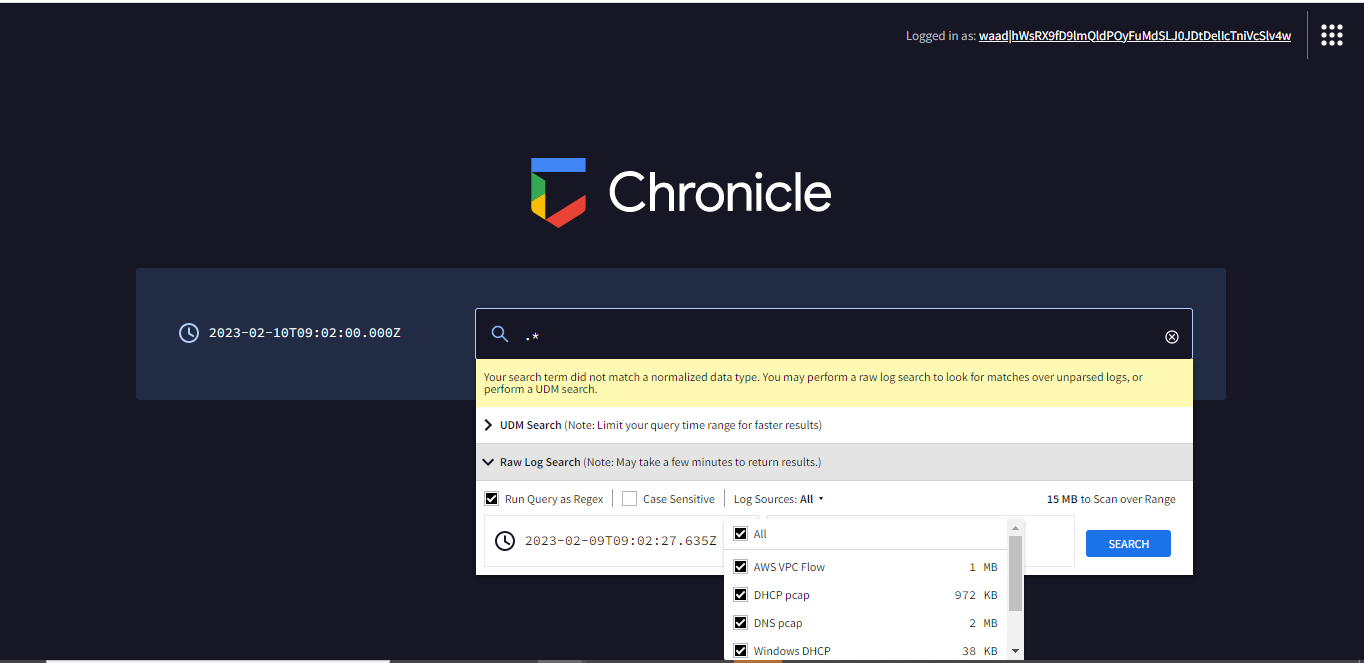

Once the configuration is completed, need to validate the logs in chronicle using a regular expression as (".*") this expression or with specific hostname, will provide the log source types which are ingesting to chronicle, below is the screen shot for reference.
