MICROSOFT_GRAPH_ALERT

Overview

This topic describes the steps how you can collect Microsoft Graph Security API Alerts logs by setting up a Chronicle feed.

Prerequisites

• Need to have Administrator login credentials.
• Azure AD Premium P1 or P2 license is required.

Keys Generating for Microsoft Graph API Alerts

• In order to generate keys, firstly log in into the client’s azure portal and from the navigation window select Azure active directory.

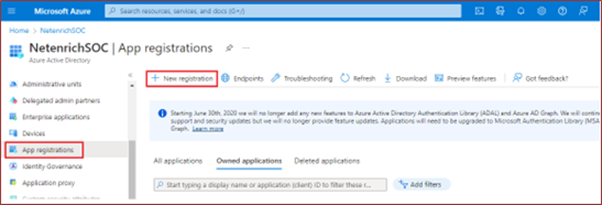

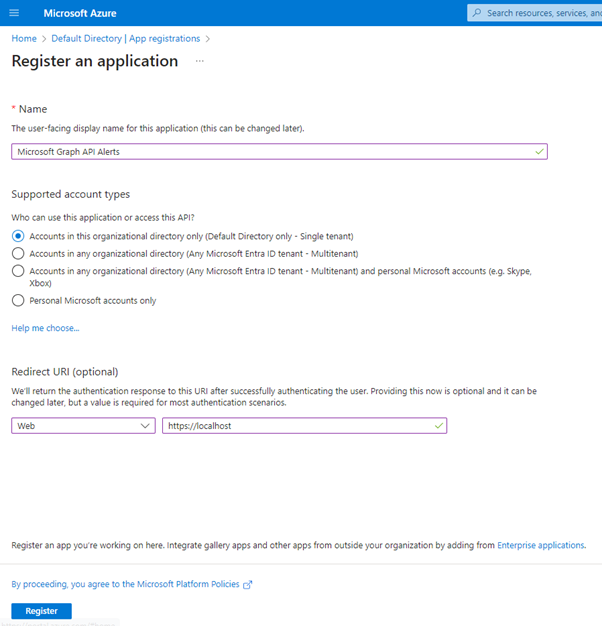

• After choosing it, from overview pane choose App Registrations > New Registration.

• Then, choose >Supported account types and select the type of account to use the application.
• In the Redirect URI section, select Web, and type https://localhost in the Web field.

• Click Register, and you’ll receive the following window.

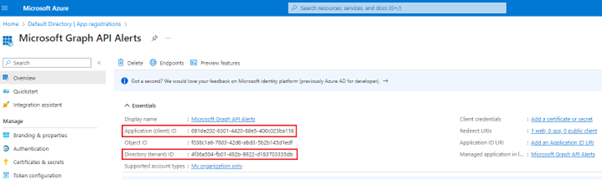

• Copy and store the Application (client) ID value & Directory (tenant) ID.
• Now, we need to generate the “client secret” for the application.

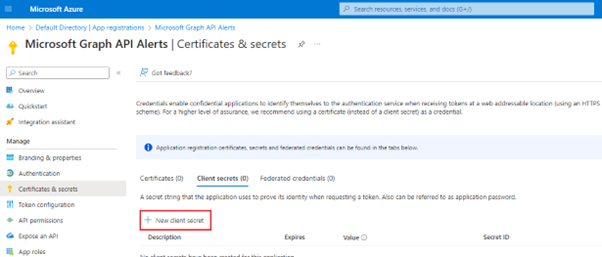

• From the Manage pane, select Certificates & secrets > New client secret.

• Select an expiry period of 24 months, and then click Add.

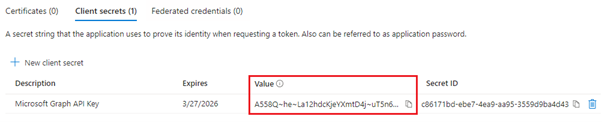

• Now copy the Client Secret Key (Value) as show below,

• Now, we need to specify the permissions that the Microsoft Azure application must use to access Microsoft Graph API Alerts.
• Navigate to >manage pane > API Permissions > ADD a Permission.

• Click on the option and choose the Microsoft Graph as below,

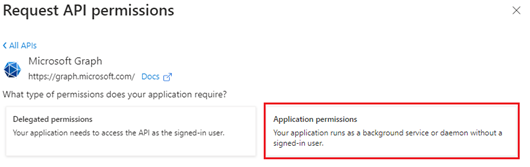

• After selecting the appropriate option, you’ll receive the following two options -

• Select >Application permissions and choose the options as below,
• Click on Add Permissions.

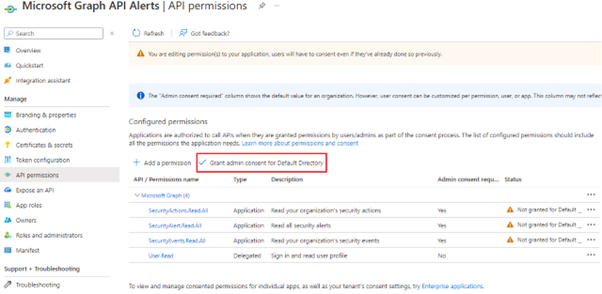

• Now, choose Grant Admin Consent > yes option as follows,

• After providing the required permissions, you need to get the window as below,



Configuring Feed in Chronicle,

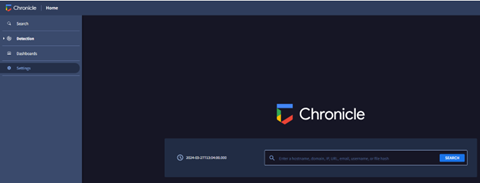

In Chronicle UI, from the left side go to Settings > Select Feeds.

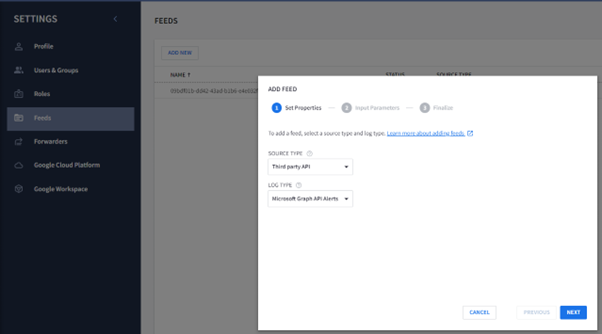

• From the Feeds page, click ADD NEW at top of the screen. The ADD FEED window appears.
• Select Third party API in SOURCE TYPE and Select Microsoft Graph API Alerts in LOG TYPE.

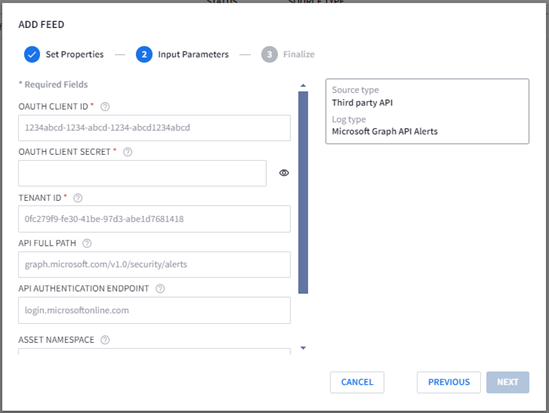

Now please provide below required fields,



OAUTH CLIENT ID: Provide the Application (client) ID which you have copied.

OAUTH CLIENT SECRET: Provide the Client Secret Key (Value) which you have copied.

TENANT ID: Provide the Directory (tenant) ID which you have copied.

API FULL PATH: Provide the Path - graph.microsoft.com/v1.0/security/alerts

API AUTHENTICATION ENDPOINT: Provide the Endpoint - https://login.microsoftonline.com/{tenantId}/oauth2/token



Note: Required Fields are OAUTH CLIENT ID, OAUTH CLIENT SECRET & TENANT ID.

API FULL PATH & API AUTHENTICATION ENDPOINT is optional.

• Click Next and then click Submit.
