Cisco Switch

This topic describes the steps to configure Syslog on the Cisco Switch.

Prerequisites

• Administrator login credentials

Configuring Cisco Switch Syslogs

Follow the below steps to configure your Cisco device:

1. Log in to your Cisco Switch.

2. Type the following command to log in to the switch in privileged exec:
    enable

Example:
Switch> enable
Switch#

3. Type the following command to switch to configuration mode:

conf t

Example:
Switch# conf t
Switch(config)#

4. Type the following commands:

• Sending logs to Forwarder:

logging host <Forwarder IP> transport <tcp/udp> port <Port Number>

logging source-interface <interface>

Example:

logging host 192.168.1.12 transport tcp port 11528

logging source-interface Ethernet1/1

• For Trap Configuration:
  logging trap <level>

Example: logging trap informational

• For Console Configuration:
  logging console <level>

Example: logging console Informational

• For Severity Configuration:
  logging severity: <level>

Example: logging severity Informational

• For Facility Configuration:
  logging facility local<level>

Example: logging facility local6

5. By default, timestamps are not included in the syslog messages. To enable timestamps, use the following command:

Example: service timestamps log datetime

6. Exit Configuration Mode and Save Configuration.

Please add the below Syslog Collector in the Configuration File,

- syslog:
        common:
          enabled: true
          data_type: CISCO_SWITCH
          data_hint:
          batch_n_seconds: 10
          batch_n_bytes: 1048576
        tcp_address: 0.0.0.0:11528
        udp_address: 0.0.0.0:11528

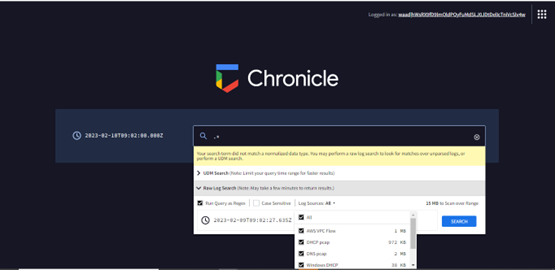

Once the configuration is completed, you need to validate the logs in chronicle using a regular expression as (".*"). This expression, or a specific hostname, will provide the log source types that are being ingested into the chronicle. Below is the screenshot for reference:
