RHEL Server via Bindplane (NIX_SYSTEM)

  • Updated
Table of Contents:

Installation of Bindplane Agent (observiq otel collector) on an RHEL Server

 Go to root user

 Example:

bindplanefwd@bindplane:~$ sudo su

root@bindplane:/home/bindplanefwd#

 Step 1: Using below command install/update the apt-get

 Example:

root@bindplane:/home/bindplanefwd# apt-get install

 Step 2: Using below command install/update the rpm

 Example:

root@bindplane:/home/bindplanefwd# apt-get install rpm

 Step 3: Using ‘wget’ command download the Bindplane Agent (observiq otel collector) using https:

 Example:

root@bindplane:/home/bindplanefwd# wget https://github.com/observIQ/bindplane-agent/releases/download/v1.64.0/observiq-otel-collector_v1.64.0_linux_amd64.rpm

 Step 4: Now using below command to install the Bindplane Agent (observiq otel collector)

 Example:

root@bindplane:/home/bindplanefwd# rpm -i observiq-otel-collector_v1.64.0_linux_amd64.rpm

Through Forwarder:

1. Before You Begin

 Step 1:

 Verify the Firewall Configuration

 a. To install the Bindplane Agent (observiq otel collector), need the following requirements:

- Ubuntu 20 or later

- Internet connectivity

 b. In the Firewall, the following Custom Port and Protocol must be allowed from the Servers to the Forwarder.

Custom Port: 11655

Protocol: TCP

 c. In the Firewall, the following Hosts must be allowed from the Forwarder to Chronicle.

Connection Type Destination Port
TCP malachiteingestion-pa.googleapis.com 443
TCP asia-northeast1-malachiteingestion-pa.googleapis.com 443
TCP asia-south1-malachiteingestion-pa.googleapis.com 443
TCP asia-southeast1-malachiteingestion-pa.googleapis.com 443
TCP australia-southeast1-malachiteingestion-pa.googleapis.com 443
TCP europe-malachiteingestion-pa.googleapis.com 443
TCP europe-west2-malachiteingestion-pa.googleapis.com 443
TCP europe-west3-malachiteingestion-pa.googleapis.com 443
TCP europe-west6-malachiteingestion-pa.googleapis.com 443
TCP europe-west12-malachiteingestion-pa.googleapis.com 443
TCP me-central1-malachiteingestion-pa.googleapis.com 443
TCP me-central2-malachiteingestion-pa.googleapis.com 443
TCP me-west1-malachiteingestion-pa.googleapis.com 443
TCP northamerica-northeast2-malachiteingestion-pa.googleapis.com 443
TCP accounts.google.com 443
TCP oauth2.googleapis.com 443

Step 2:
Add the below Collector to the Forwarder Config File,

- syslog:
        common:
          enabled: true
          data_type: NIX_SYSTEM
          data_hint:
          batch_n_seconds: 10
          batch_n_bytes: 1048576
        tcp_address: 0.0.0.0:11655
        udp_address: 0.0.0.0:11655

2. Configuring config.yaml file

 Step 1: To locate the ‘config.yaml’ file follow the below commands,

bindplanefwd@bindplane:~$ sudo su

root@bindplane:/home/bindplanefwd#

root@bindplane:/home/bindplanefwd# cd /opt

root@bindplane:/opt#

root@bindplane:/opt# cd observiq-otel-collector/

root@bindplane:/opt/observiq-otel-collector#

root@bindplane:/opt/observiq-otel-collector# gedit config.yaml

 Now Copy the Query below and paste it into the config.yaml file.

receivers:
  filelog/linux:
    include:
      - /var/log/messages
      - /var/log/lastlog
      - /var/log/btmp
      - /var/log/wtmp
      - /var/log/secure
      - /var/log/cron
      - /var/log/maillog
      - /var/log/boot
    start_at: end
    poll_interval: 5s

exporters:
  chronicleforwarder/linux:
    export_type: syslog
    raw_log_field: body
    syslog:
      endpoint: Forwarder IP:11655
      transport: tcp

service:
  pipelines:
     logs/linux:
        receivers:
          - filelog/linux
        exporters: [chronicleforwarder/linux]



Step 2: After Saving the config.yaml file Start the observIQ otel collector.

 root@bindplane:/opt/observiq-otel-collector# systemctl start observiq-otel-collector

 Step 3: Now using below command to enable the observIQ otel collector Service which is in disabled state.

 root@bindplane:/opt/observiq-otel-collector# systemctl enable --now observiq-otel-collector

Step 4. Now, verify that the RHEL Logs are being ingested to the Forwarder and then to Chronicle.

Directly to Chronicle:

1. Before You Begin

Step 1:

Verify the Firewall Configuration

a. To install the Bindplane Agent (observiq otel collector), need the following requirements:

- Ubuntu 20 or later

- Internet connectivity

- Google SecOps ingestion authentication file

- Google SecOps Customer ID

 b. In the Firewall, the following Hosts must be allowed from the Server to Chronicle.

Connection Type Destination Port
TCP malachiteingestion-pa.googleapis.com 443
TCP asia-northeast1-malachiteingestion-pa.googleapis.com 443
TCP asia-south1-malachiteingestion-pa.googleapis.com 443
TCP asia-southeast1-malachiteingestion-pa.googleapis.com 443
TCP australia-southeast1-malachiteingestion-pa.googleapis.com 443
TCP europe-malachiteingestion-pa.googleapis.com 443
TCP europe-west2-malachiteingestion-pa.googleapis.com 443
TCP europe-west3-malachiteingestion-pa.googleapis.com 443
TCP europe-west6-malachiteingestion-pa.googleapis.com 443
TCP europe-west12-malachiteingestion-pa.googleapis.com 443
TCP me-central1-malachiteingestion-pa.googleapis.com 443
TCP me-central2-malachiteingestion-pa.googleapis.com 443
TCP me-west1-malachiteingestion-pa.googleapis.com 443
TCP northamerica-northeast2-malachiteingestion-pa.googleapis.com 443
TCP accounts.google.com 443
TCP oauth2.googleapis.com 443

Step 2:

a. Google SecOps ingestion authentication file, this is used to add the required fields in the Creds Section in the Bindplane Query,

            To download the authentication file, follow these steps:

  • Open the Google SecOps Chronicle.
  • Go to SIEM Settings > Collection Agent.
  • Download the Google SecOps ingestion authentication file.


b. Google SecOps Customer ID,

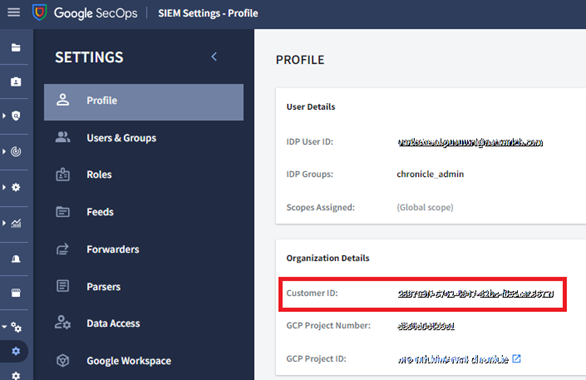

            To find the customer ID, follow these steps:

  • Open the Google SecOps Chronicle.
  • Go to SIEM Settings > Profile.
  • Copy the Customer ID from the Organization Details section.


2. Configuring config.yaml file

 Step 1: To locate the ‘config.yaml’ file follow the below commands,

 bindplanefwd@bindplane:~$ sudo su

root@bindplane:/home/bindplanefwd#

root@bindplane:/home/bindplanefwd# cd /opt

root@bindplane:/opt#

 root@bindplane:/opt# cd observiq-otel-collector/

root@bindplane:/opt/observiq-otel-collector#

root@bindplane:/opt/observiq-otel-collector# gedit config.yaml

 Now Copy the Query below and paste it into the config.yaml file.

receivers:
  filelog/linux:
    include:
      - /var/log/messages
      - /var/log/lastlog
      - /var/log/btmp
      - /var/log/wtmp
      - /var/log/secure
      - /var/log/cron
      - /var/log/maillog
      - /var/log/boot
    start_at: end
    poll_interval: 5s

exporters:
  chronicle/linux:
    endpoint: malachiteingestion-pa.googleapis.com
    creds: '{
  "type": "service_account",
  "project_id": "malachite-projectname",
  "private_key_id": "abcdefghijklmnopqrstuvwxyz123456789",
  "private_key": "-----BEGIN PRIVATE KEY-----\nhgjgkgkgkgkgkgkgfg78yhjkDGh\n-----END PRIVATE KEY-----\n",
  "client_email": "account@malachite-projectname.iam.gserviceaccount.com",
  "client_id": "123456789123456789",
  "auth_uri": "https://accounts.google.com/o/oauth2/auth",
  "token_uri": "https://oauth2.googleapis.com/token",
  "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
  "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/account%40malachite-projectname.iam.gserviceaccount.com",
  "universe_domain": "googleapis.com"
}'

    log_type: 'NIX_SYSTEM'
    override_log_type: false
    raw_log_field: body
    customer_id: 'dddddddd-dddd-dddd-dddd-dddddddddddd'

service:
  pipelines:
    logs/linux:
      receivers:
        - filelog/linux
      exporters: [chronicle/linux]

Step 2. Now refer to Step 2 (a & b) in ‘Before You Begin’ sub-section under ‘Directly to Chronicle’ section.
Google SecOps ingestion authentication file, copy the data from the authentication file and replace it in the exporters (which are highlighted).

Step 3. Google SecOps Customer ID, copy the Customer ID and paste it into the ‘customer_id’ under exporters.

Step 4. After Saving the ‘config.yaml’ file Start the observIQ otel collector.

root@bindplane:/opt/observiq-otel-collector# systemctl start observiq-otel-collector

Step 5. Now using below command to enable the observIQ otel collector Service which is in disabled state.

root@bindplane:/opt/observiq-otel-collector# systemctl enable --now observiq-otel-collector

Step 6. Now, verify that the RHEL Server Logs are being ingested into Chronicle.
