Monitoring Chronicle Instance Setup Process

Introduction

While configuring your Chronicle instance in Resolution Intelligence Cloud™, it’s essential to monitor the setup progress to ensure each step completes successfully.

A successful setup requires various configuration steps to be completed accurately. Monitoring the progress of these steps helps to ensure a seamless setup and catch any errors that might prevent certain features from functioning correctly.

The Activity section within the platform provides real-time insights into the configuration process, allowing you to verify each step and identify any potential issues promptly. This document outlines the details displayed in the Activity section and explains how to use it to monitor configuration progress.

Monitoring Configuration Progress

The Activity section within Resolution Intelligence Cloud™ displays real-time updates on the configuration process, providing visibility into each step as it executes.

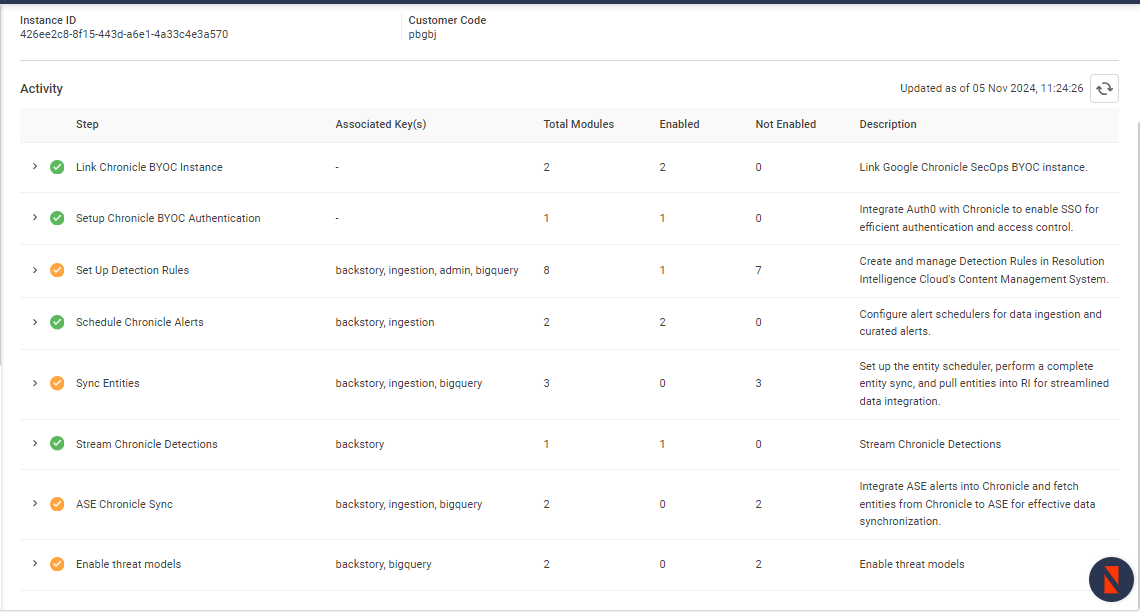

Activity Section Overview

The following details are displayed in the Activity section for each configuration step:

• Step: The current configuration step being executed. You can click on each step to expand it, revealing any sub-steps involved. Each sub-step will indicate whether it has been enabled successfully. If a step is not enabled, a note will appear explaining the reason for the failure, allowing you to troubleshoot as needed.
• Associated Keys: Lists the specific keys associated with the step, helping you verify which credentials are being used at each stage of the configuration.
• Total Modules: Shows the total number of modules that are intended to be enabled as part of this step. This provides a quick overview of how many components are required to complete the step.
• Enabled: Reflects the number of modules that have been successfully enabled in the step, confirming that those components are active and configured correctly.
• Not Enabled: Indicates the count of modules that have failed to enable. Reviewing this number helps in quickly identifying if any issues have occurred during configuration.
• Description: Provides a brief description of each step. This description explains the purpose of the step, giving context for how it contributes to the overall configuration process.

Using the Activity Section to Monitor Progress

1. Access the Activity Section:

1. Open the Configurations menu by clicking the gear icon or breadcrumb icon in the upper left corner.
2. Navigate to Integrations and select the Chronicle integration tile.
3. The Activity section will appear, displaying real-time updates for each configuration step.

2. Expand and Review Each Step:

1. Click on each step to expand it and view the details of any sub-steps, including which modules were enabled or not enabled.
2. Review the Associated Keys and Total Modules to confirm that the correct resources are being applied.

3. Identify and Resolve Issues:

• For any step where Not Enabled modules are listed, click on the step to view the failure note. This note will provide details on why the module wasn’t enabled, helping you identify and resolve configuration issues quickly.

4. Complete Configuration:

• Continue monitoring each step until all modules are successfully enabled. Once each step in the Activity section is marked as completed, your Chronicle instance should be fully configured and integrated with Resolution Intelligence Cloud™.

For additional assistance with troubleshooting configuration steps, please reach out to support. This monitoring feature enables a proactive approach, ensuring your organization can maximize the benefits of Resolution Intelligence Cloud™ and Google Chronicle’s integrated threat detection capabilities.
